UV Sensor Probe - GUVA-S12SC-I8H3

- Single Supply Voltage, 4-20mA, Current Output
- Measure the UV Power from Sunlight
- Power Supply DC 9 ~ 24V
- Supply current:3.19~4.1mA, typical 4mA
- Spectral Detection Range: 240~370 nm
- Detection Power Range: 0~50mW/cm2
- Response Time: 10ms

  • Model Number: GUVA-S12SC-I8H3
  • Data Sheet: Date Sheet File
Quantity:
- +

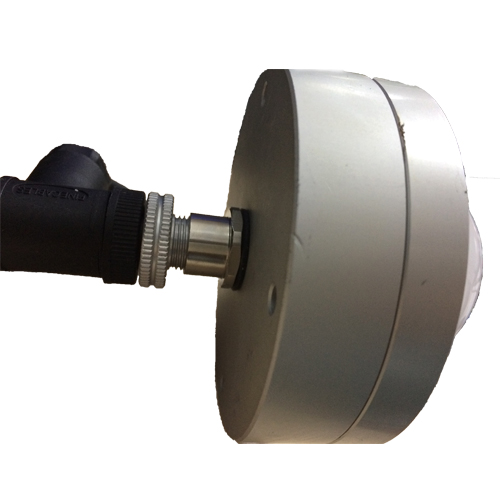

  • UV Sensor Probe

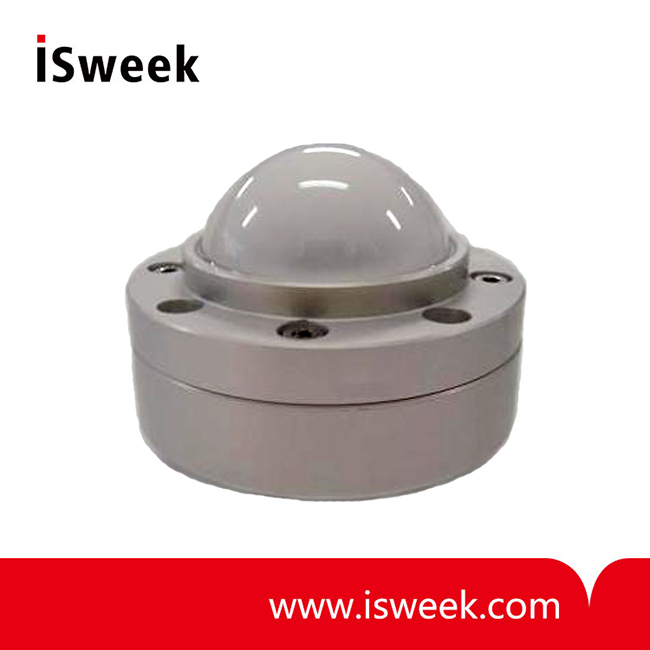

  • UV Sensor Probe

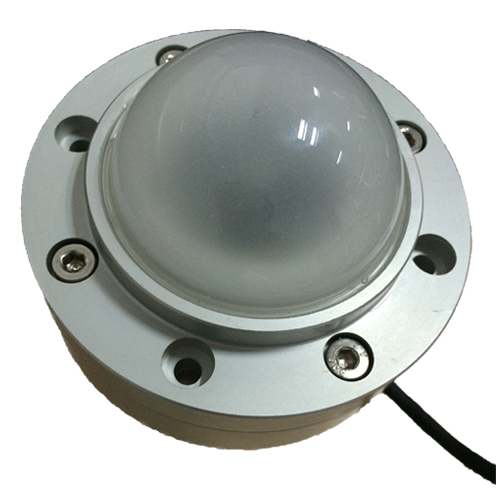

  • UV Sensor Probe

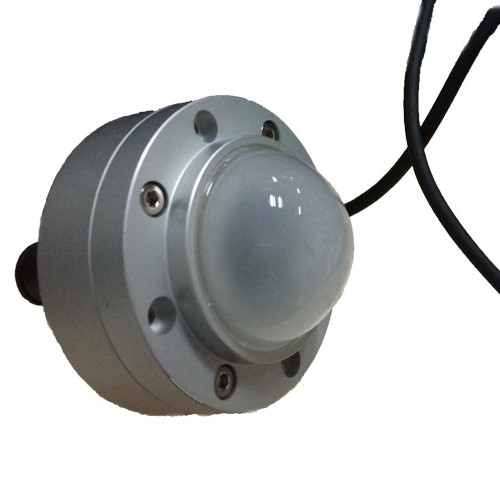

  • UV Sensor Probe
Mouse over image to zoom

Product Specification

GUVA-S12SC-I8H3 UV Sensor Probe Features
 - Single Supply Voltage, 4-20 mA Current Output
 - Measure the UV Power from Sunlight

GUVA-S12SC-I8H3 UV Sensor Probe Applications
 - UV Power Monitoring of Sunlight


GUVA-S12SC-I8H3 UV Sensor Probe Absolute Maximum Ratings

Parameter
Symbol
Value
Unit
Remark
Min.
 Typ.
 Max
Storage Temperature
Tst
-40
90

Operating Temperature
Top
-30
85


GUVA-S12SC-I8H3 UV Sensor Probe Electro-Optical Characteristics (at 25 ℃)

Parameter
Symbol
Value
Unit
Remark
Min.
Typ.
Max.
Supply Voltage
Vcc
9
24 V DC
Offset Current
IQ
3.9
4 4.1
mA
Spectral Detection Range
λ
240
370 nm 10% of Max
Output Current
Iout
4
20 mA at 1 mW/cm2
Detection Power Range
P 0
50 mW/cm2
Response Time
T
10
ms
Load Resistor
RL


500  Ω
