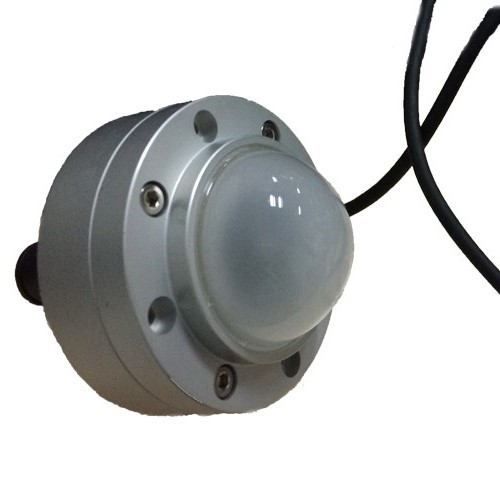

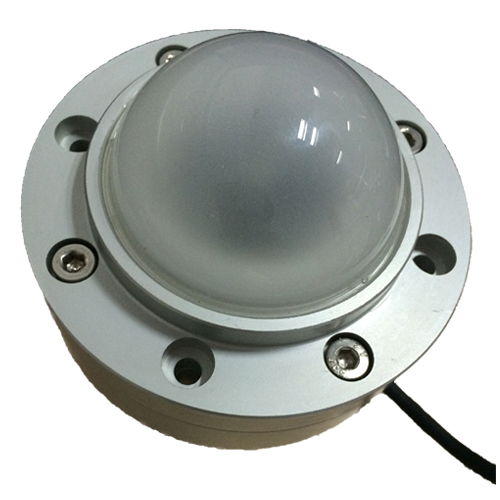

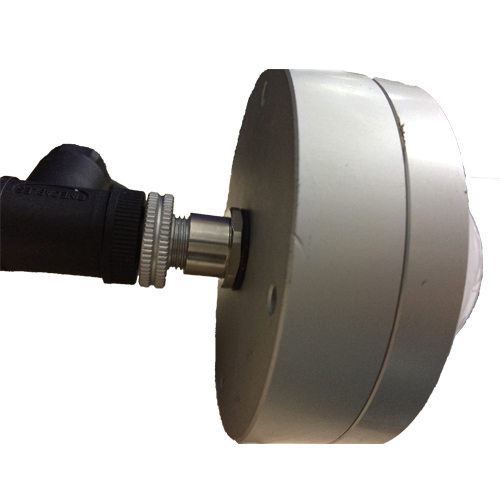

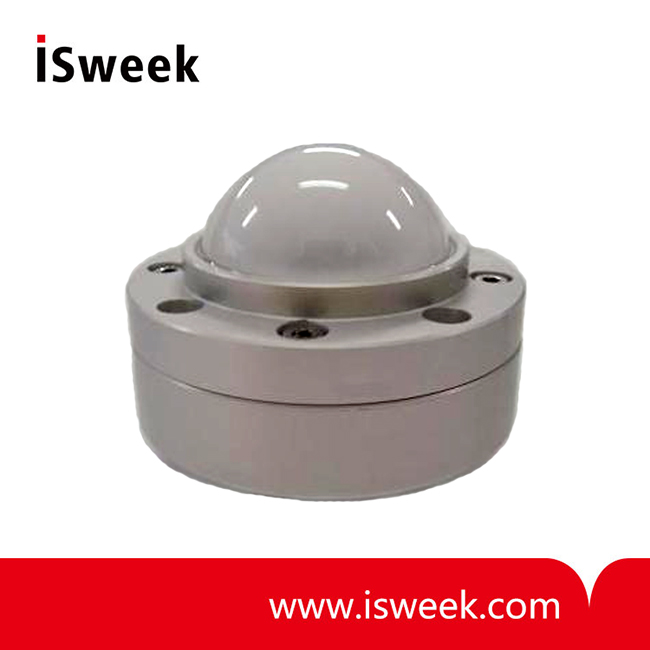

UV Sensor Probe - GUVB-S11SC-3LWH3

- Single Supply Voltage
- Analog Voltage Output
- Measure the UV Index from Sunlight
- Power Supply: DC 9 ~ 24V
- Supply current: 3.3mA
- Response Time: 10ms
- Output Voltage: 0.25V
- Spectral Detection Range: 280~400nm

  • Model Number: GUVB-S11SC-3LWH3
  • Data Sheet: Date Sheet File
Quantity:
- +
  • UV Sensor Probe
  • UV Sensor Probe
  • UV Sensor Probe
  • UV Sensor Probe
Mouse over image to zoom

Product Specification

GUVB-S11SC-3LWH3 UV Sensor Probe Features
 - Single Supply Voltage, Analog Voltage Output
 - Measure the UV Index from Sunlight

GUVB-S11SC-3LWH3 UV Sensor Probe Applications
- UV Index Monitoring


GUVB-S11SC-3LWH3 UV Sensor Probe Absolute Maximum Ratings

Parameter
Symbol
Value
Unit
Remark
Min.
 Typ.
 Max
Storage Temperature
Tst
-40
90

Operating Temperature
Top
-30
85


GUVB-S11SC-3LWH3 UV Sensor Probe Electro-Optical Characteristics (at 25 ℃)

Parameter
Symbol
Value
Unit
Remark
Min.
Typ.
Max.
Supply Voltage
Vcc
9
24 V DC
1.8
5.5 V Low Power (Option)
Supply Current
IQ

3.3
mA
Spectral Detection Range
λ
280
400 nm 10% of Max
Output Voltage
Vout

0.25
V at 1 UVI
Response Time
T
10
ms
