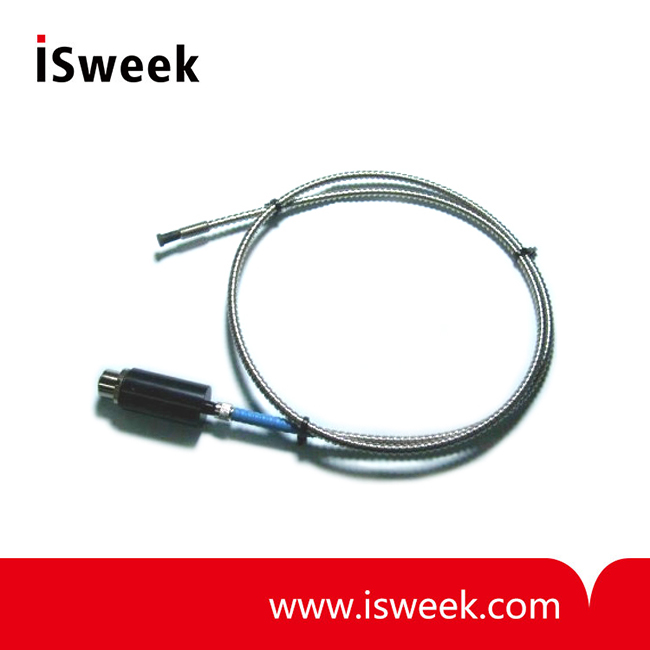

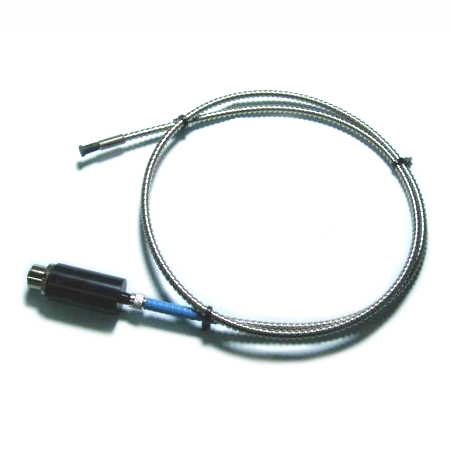

UV Sensor Probe - GVBL-T12GC-3LO1
- Single Supply Voltage
- Analog Voltage Output
- High Temperature Environment (under 200°C)
- Power supply: 9 ~ 24 VDC
- Supply Current: 3.3 mA
- Spectral Detection Range: 330~445nm
- Output Voltage: 0 ~ 5V
- Detection Power Range:0~100mW/cm²
- Model Number: GVBL-T12GC-3LO1
- Data Sheet:
- Quantity:
- - +
Product Specification
GVBL-T12GC-3LO1 UV Sensor Probe Feature
- Single Supply Voltage, Analog Voltage Output
- High Temperature Environment (under 200°C)
GVBL-T12GC-3LO1 UV Sensor Probe Application
- UV Power Measure
- UV Lamp Monitoring
GVBL-T12GC-3LO1 UV Sensor Probe Case dimensions
|
LO Probe (mm) |
LO Probe Material |
Optical Fiber |
|||
|
Diameter |
Total |
Length (m) |
Core (mm) |
Material |
|
| 20 | 56 |
Al-60 |
1 | 1 |
SUS 304 |
GVBL-T12GC-3LO1 UV Sensor Probe Absolute Maximum Ratings
|
Absolute Maximum Ratings |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
|
Operating Temperature |
Optical Fiber |
|
|
200 |
°C |
|
|
LO Probe |
-30 |
|
85 |
°C |
|
|
GVBL-T12GC-3LO1 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
|
Supply Voltage |
Vcc |
9 |
|
24 | VDC |
|
|
|
Supply Current |
IQ |
|
3.3 |
|
mA |
|
|
|
Spectral Detection Range |
λ |
330 |
|
445 |
nm |
|
|
|
Output Voltage |
Vout |
0 |
|
5 | V |
|
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
|
|
|
Response Time |
T |
|
10 |
|
ms |
|
|
* maximum detection range : 100mW/cm2 (default), 1000mW/cm2 (optional)
