Wild Ultra-low Temperature Protection Type Pressure Transmitter - JYB-KO-YW

• Measuring range: any range within 0~100MPa
• Power supply: DC 24V (12V~32V)
• Medium temperature: -40°C~125°C
• Environment temperature: -20°C~85°C
• Response time: ≤ 50ms
• Repeatability: ± 0.2%F.S
• long-term stability: ± 0.5%F.S/y
• Nonlinear: ± 0.2%F.S

  • Model Number: JYB-KO-YW
- +

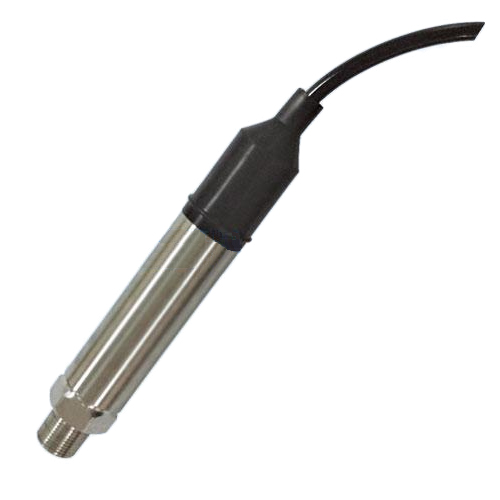

  • Wild Ultra-low Temperature Protection Type Pressure Transmitter

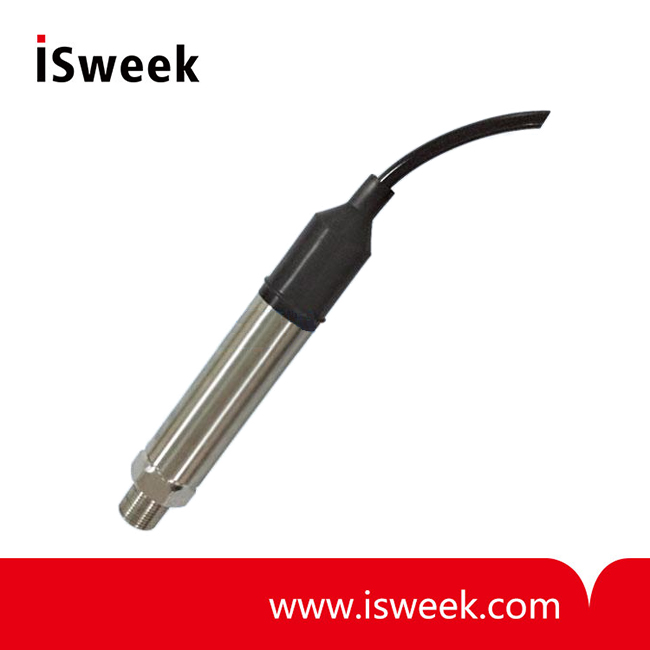

  • Wild Ultra-low Temperature Protection Type Pressure Transmitter
Mouse over image to zoom

Product Specification

JYB-KO-YW Pressure Transmitter Characteristic
• The titanium/silicon - sapphire or import diffusion silicon core,is suitable for precision measurement of different medium and different temperature stress
• Whole stainless steel laser welding, excellent anticorrosion and shock resistance
• Military grade device, the linear temperature compensation, temperature range is from - 40 degree to 125 degree
• Overload shock resistance and  strong interference resistance ability
• Prevent the surge voltage, reverse polarity over-voltage and over-current protection
• Long working life and high stability
• IP grade is 68

JYB-KO-YW Pressure Transmitter Use
• Low temperature industrial process pressure control
• Low temperature scientific experiments, cooling tank, low temperature storage tank and propellant low temperature pressure  measurement
• Bad conditions such as water conservancy, hydropower, constant pressure water supply, chemical industry with relatively high waterproof performance requirements
• Urban pipeline, oil pipeline, and  building automation pressure acquisition
• Navigation, and shipbuilding industry
• Food, medicine, brewing, latex, aviation field

JYB-KO-YW Pressure Transmitter Parameters

Measuring range any range within 0~100MPa, 5kPa is the smallest range
Power supply DC 24V (12V~32V)
Load capacity current mode ≤500Ω (DC24V)
voltage mode ≥3kΩ
Accuracy class grade 0.2 (range from 70kPa to 5MPa )
grade 0.5 (range from 5kPa to 70kPa; 5 MPa to 100 MPa)
Medium temperature -40°C~125°C
Environment temperature -20°C~85°C
Response time ≤ 50ms
Repeatability ± 0.2%F.S
long-term stability ± 0.5%F.S/y
Nonlinear ± 0.2%F.S
Over load pressure two times of range
Electrical connection cable connection
Process connection M20 x 1.5  and others
The external parts material Ordinary stainless steel/316stainless steel
IP grade IP 68
