100 psi Absolute Pressure Sensor with Analogue Output - SPD100AA

• Supply Voltage:4.75~5.25 V
• Supply Current: 3 mA
• Pressure range: 0~100 psi
• Max output current: 2.2 mA
• Accuracy: ±1.8 %FS
• Response time(typ): 1 ms
• Operating temperature: -20 ~ 85°C
• Storage temperature: -40 ~ 125°C

  • Model Number: SPD100AA
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 100 psi Absolute Pressure Sensor with Analogue Output
  • 100 psi Absolute Pressure Sensor with Analogue Output
  • 100 psi Absolute Pressure Sensor with Analogue Output
Mouse over image to zoom

Product Specification

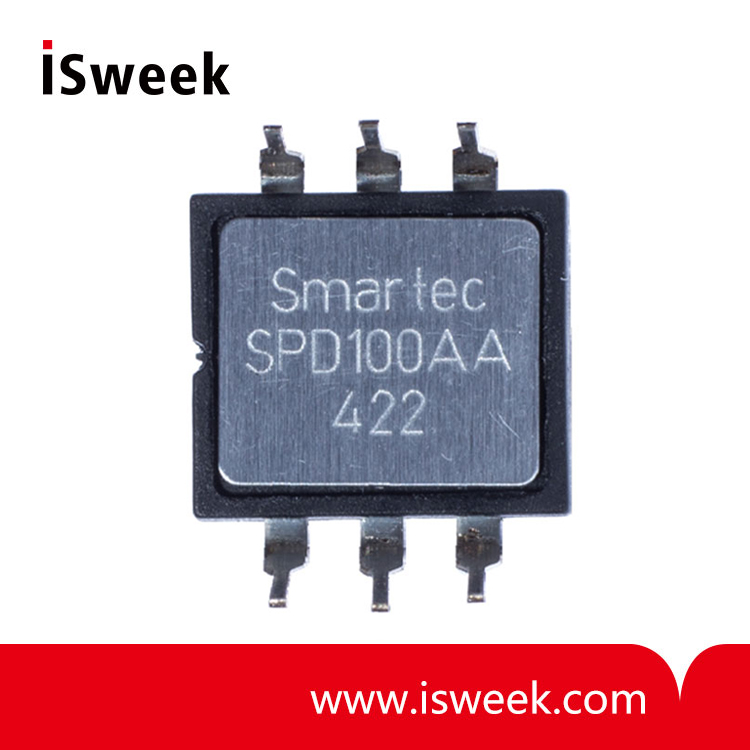

SPD100AA Absolute Pressure Sensor

This Smartec pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.

The sensor has a range of 100 psi absolute. Other ranges can be delivered on request. The output is ratiometric to the power supply voltage. At 5 Vcc the output span is 0.5 to 4.5 V.

SPD100AA Absolute Pressure Sensor Electrical Characteristics

Performance Characteristic at Vcc =5V excitation @ 25 °C

Parameter

 Min

 Typ

 Max

Units

Supply Voltage

4.75

5

5.25

V

Supply Current





3

mA

Pressure range (fs)

0



100

psi

Zero Output *)

0.428

0.5

0.572

Vdc

Span Output *80)



4.00



Vdc

Max output current





2.2

mA

Accuracy **)





±1.8

%FS

Response time



1

2

ms

Pressure overload





3x

Rated pressure

Operating temperature

-20



85

°C

Storage temperature

-40


125

°C


Wetted materials are: Pyrex Glass, Epoxy and silicon
*) Output is ratiometric to supply voltage
**) all errors included, temperature compensation over 50 ° °C
