300 psi Absolute Pressure Sensor with Bridge Output - SPD300ABTO05

• Excitation Voltage: 0 ~ 10 V
• Excitation Current: 1.5 mA
• Offset: ±30 mV
• Linearity: ±1 .0 %FS
• Bridge resistance: 2.7 ~ 4.0 kΩ
• Operating temperature: -20 ~ 85 °C
• Storage temperature: -40 ~ 150 °C

  • Model Number: SPD300ABTO05
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 300 psi Absolute Pressure Sensor with Bridge Output
  • 300 psi Absolute Pressure Sensor with Bridge Output
Mouse over image to zoom

Product Specification

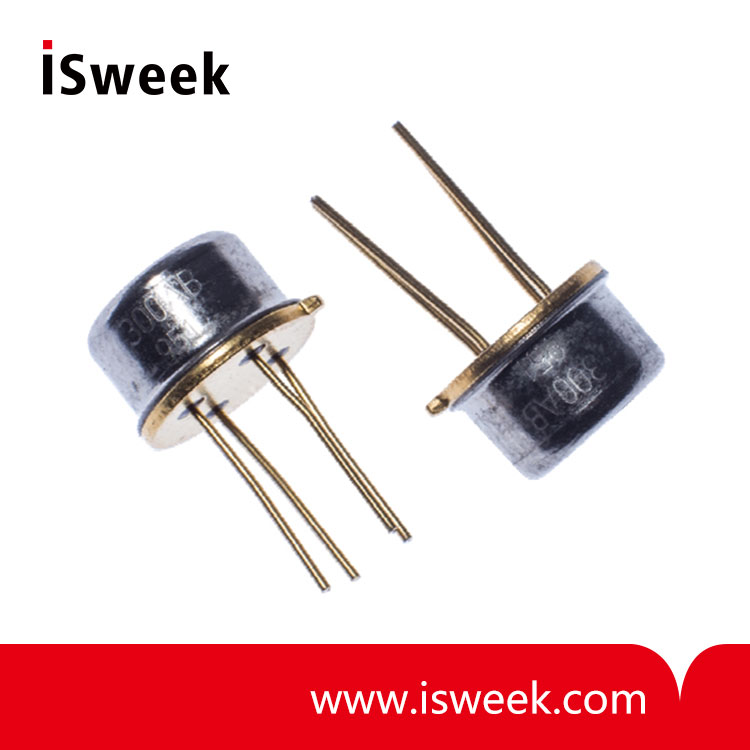

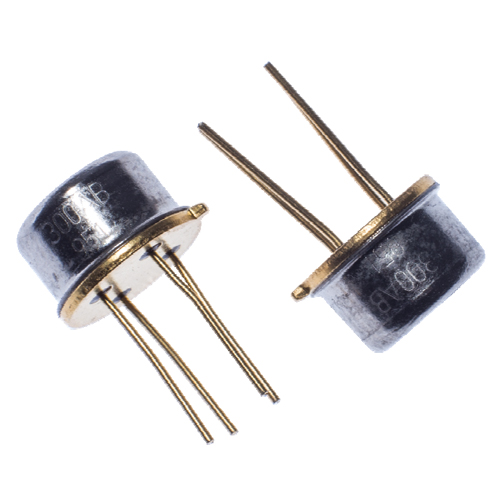

SPD300ABTO05 Pressure Sensor

A 20 Bar Absolute Pressure Sensor
This 20 bar absolute pressure sensor is specially designed for measuring the pressure of liquefied gasses (like l.g.p.). Using an Absolute type pressure sensor has a distinct safety advantage over a Gauge type pressure sensor for this type of applications.

In case of a malfunction of the membrane of a Gauge type pressure sensor a gas leak could occur. Using an Absolute type pressure sensor completely circumvents this safety issue.

The trade-off is that the connecting wires carrying the electrical signals have to be run inside the pressurized container. The TO5 metal can encapsulation is especially suited for mounting in a ruggedized brass fitting.

SPD300ABTO05 Absolute Pressure Sensor Electrical Characteristics

Characteristic @ Vcc = 5V and 25 °C

Parameter

 Min

 Typ

 Max

Units.

Excitation Voltage

0

5

10

V

Excitation Current

-

1.5



mA

Span (fs) 300 psi

130

220

275

mV

Offset

-30

0

+30

mV

Temp Coeff Span

-15

-19

-23

 %FS/100°C

Temp Coeff Offset

-7



+7

%FS/100°C

Linearity



±1.0



%FS

Bridge resistance

2.7

3.3

4.0

kΩ

Pressure overload





2 x

Rated FS

Operating temperature

-20



85

°C

Storage temperature

-40



150

°C


•  Wetted materials are: nickel, silicon, RTV, gold and glass
•  Other pressure ranges on request
