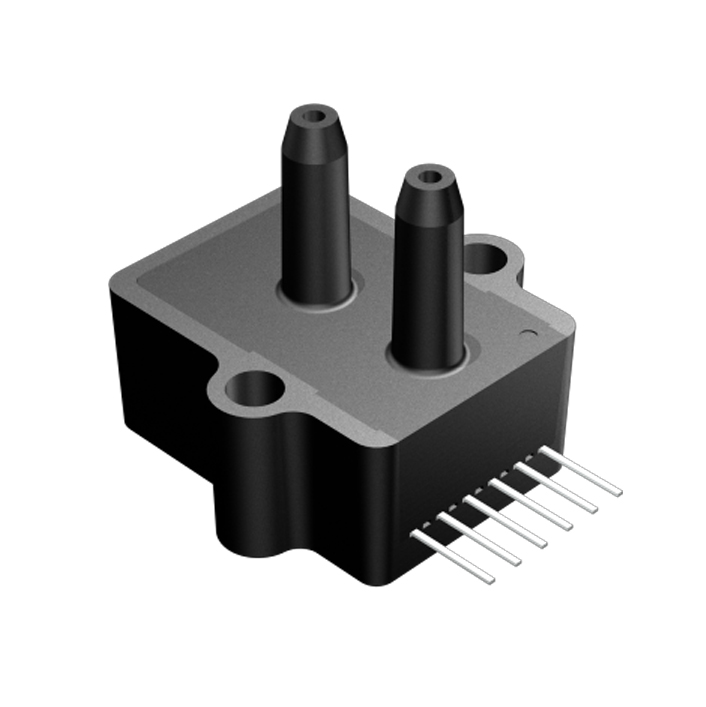

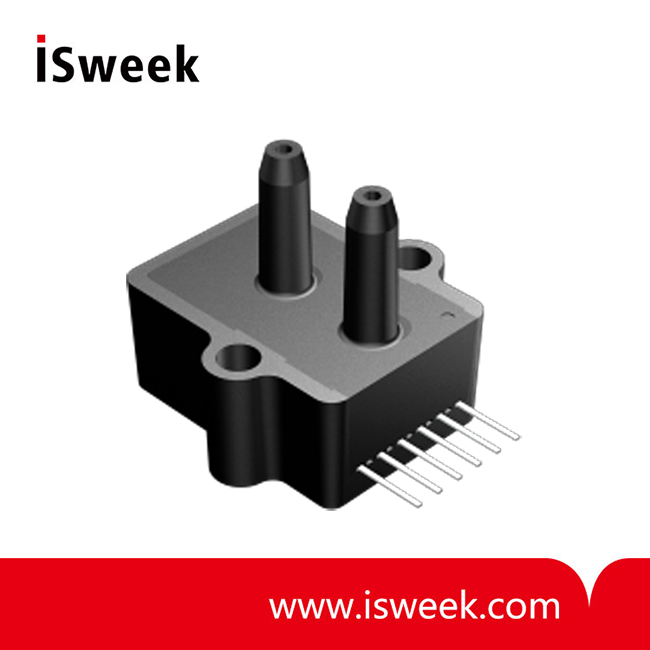

ADCA Series Amplified Low Pressure Sensors - 5 INCH-D-4V-PRIME

• 0.25 to 60 inH2O Pressure Ranges
• Supply Voltage: +4.5 to +5.5 Vdc
• Common-mode pressure: -10 to +10 psig
• Lead Temperature, max (soldering 2-4 sec.): 270°C
• Operating & Storage Temperature: -40 to 125 °C
• Humidity Limits: 0 to 95% RH (non condensing)
• Calibrated Zero and Span

Model Number: 5 INCH-D-4V-PRIME
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ADCA Series Amplified Low Pressure Sensors General Description
The ADCA series of Amplified low pressure sensors are based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a ratiometric 4-volt output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

ADCA Series Amplified Low Pressure Sensors Features
• 0.25 to 60 inH2O Pressure Ranges
• Ratiometric 4V Amplified Output
• Temperature Compensated Ranges Available in Standard, Industrial and Military ranges.
• Calibrated Zero and Span

ADCA Series Amplified Low Pressure Sensors Applications
• Medical Instrumentation
• Environmental Controls
• HVAC

ADCA Series Amplified Low Pressure Sensors

Pressure Sensor Ratings		Environmental Specifications
Supply Voltage VS	+4.5 to +5.5 Vdc	Compensated Temperature
Common-mode pressure	-10 to +10 psig	Standard:	5 °C to 50 °C
Lead Temperature, max (soldering 2-4 sec.)	270°C	Industrial:	-25 °C to 85 °C
		Military:	-40 °C to 125 °
		Operating & Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

ADCA Series Amplified Low Pressure Sensors Standard Pressure Ranges

Device	Operating Range		Pressure Type	Nominal Span	Proof Pressure		Burst Pressure		Specification Notes
Device	inH2O	Pa	Pressure Type	Nominal Span	inH2O	kPa	inH2O	kPa	Specification Notes
0.25 INCH-D-4V	±0.25	65	Differential	4V	40	10	80	20	1
0.25 INCH-G-4V	0 to 0.25	65	Gage	4V	40	10	80	20	1
0.5 INCH-D-4V	±0.5	125	Differential	4V	40	10	80	20	1
0.5 INCH-G-4V	0 to 0.5	125	Gage	4V	40	10	80	20	1
1 MBAR-D-4V	±1 mbar	100	Differential	4V	100	25	200	50	1
1 INCH-D-4V	±1	250	Differential	4V	100	25	200	50	-
1 INCH-G-4V	0 to 1	250	Gage	4V	100	25	200	50	-
2.5 INCH-D-4V	±2.5	625	Differential	4V	200	50	300	75	1
2.5 INCH-G-4V	0 to 2.5	625	Gage	4V	200	50	300	75	-
5 INCH-D-4V	±5	1,250	Differential	4V	200	50	300	75	-
5 INCH-G-4V	0 to 5	1,250	Gage	4V	200	50	300	75	-
10 INCH-D-4V	±10	2,500	Differential	4V	200	50	300	75	-
10 INCH-G-4V	0 to 10	2,500	Gage	4V	200	50	300	75	-
20 INCH-D-4V	±20	5,000	Differential	4V	300	75	500	125	-
20 INCH-G-4V	0 to 20	5,000	Gage	4V	300	75	500	125	-
30 INCH-D-4V	±30	7,500	Differential	4V	500	125	800	200	-
30 INCH-G-4V	0 to 30	7,500	Gage	4V	500	125	800	200	-
40 INCH-G-4V	0 to 40	10,000	Gage	4V	500	125	800	200	1
60 INCH-G-4V	0 to 60	15,000	Gage	4V	500	125	800	200	1

ADCA Series Amplified Low Pressure Sensors Ordering Information:

Where:
Compensation Temperature Range: ___________ (empty – indicates Standard)
Compensation Temperature Range: "—PRIME" indicates Industrial
Compensation Temperature Range: "—MIL" indicates Military
Example: 5 INCH-D-4V-PRIME
