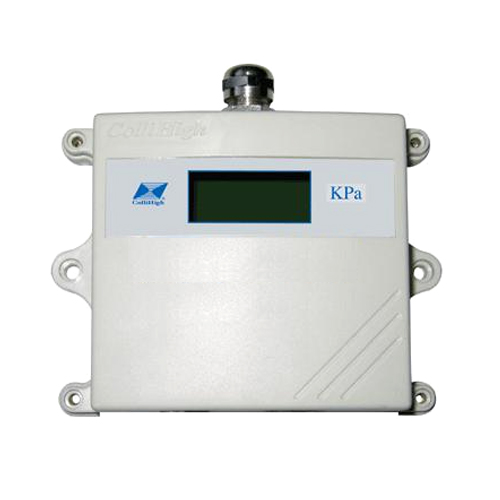

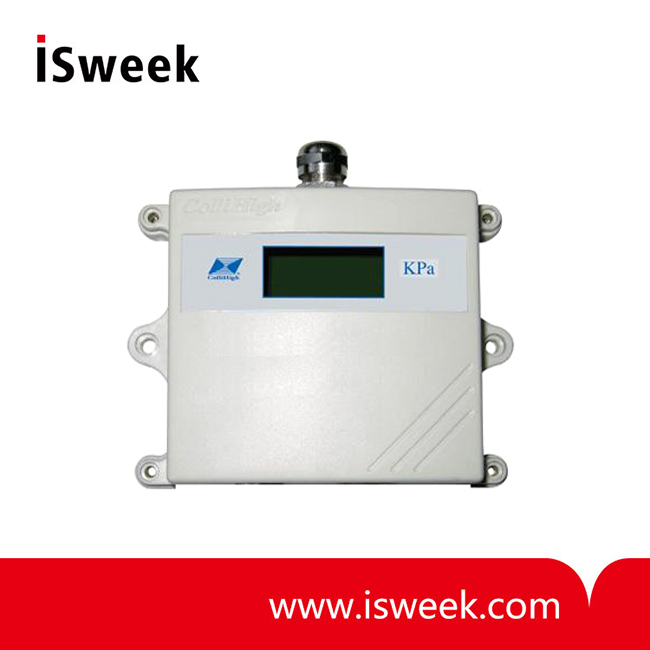

Atmospheric Pressure Transmitter - JQYB

• Measuring range: 0~110kPa
• Power supply: DC 24V (12V~32V)
• Accuracy: ± 0.25%F.S
• Medium temperature: -10°C~50°C
• Environment temperature: -10°C~50°C
• Response time: ≤ 50ms
• Hysteresis and repeatability: ± 0.2%F.S
• Nonlinear: ± 0.2%F.S

  • Model Number: JQYB
Quantity:
- +
  • Atmospheric Pressure Transmitter
  • Atmospheric Pressure Transmitter
Mouse over image to zoom

Product Specification

JQYB Atmospheric Pressure Transmitter Characteristic
• Intelligent digital circuit, atmospheric pressure automatically correct temperature drift with the temperature change
• Three prevent design: prevent surge voltage, polarity reverse and electromagnetic interference
• LCD more information liquid crystal display
• A variety ways of output like voltage, current,network and so on

JQYB Atmospheric Pressure Transmitter Parameters

Measuring range 0~110kPa
Power supply DC 24V (12V~32V)
Load capacity current mode ≤500Ω
voltage mode ≥3kΩ
Accuracy ± 0.25%F.S (when the temperature is 23±2°C and a standard atmospheric pressure); ± 0.5%F.S
Medium temperature -10°C~50°C
Environment temperature -10°C~50°C
Response time ≤ 50ms
Hysteresis and repeatability   ± 0.2%F.S
Long-term stability ± 0.1%F.S/y
Nonlinear ± 0.2%F.S
Thermal zero drift ± 0.02%F.S/°C
Max working pressure two times of range
Electrical connection terminal
Measuring medium air
