AXCA Series Barometric Amplified Pressure Sensors - BARO-A-4V/BARO-A-4V-MIL

• 600 to 1,100 mbar Barometric Pressure
• Lead Temperature, max (soldering 2-4 sec.): 250°C
• Burst Pressure: 60 psi
• Temperature Compensated (-25 to 85°C, -40 to 125°C, 5 to 50°C)
• Operating Temperature: -40 to 125 °C
• Storage Temperature: -40 to 125 °C
• Humidity Limits: 0 to 95% RH (non condensing)

  • Model Number: BARO-A-4V/BARO-A-4V-MIL
  • Data Sheet: Date Sheet File
Quantity:
- +

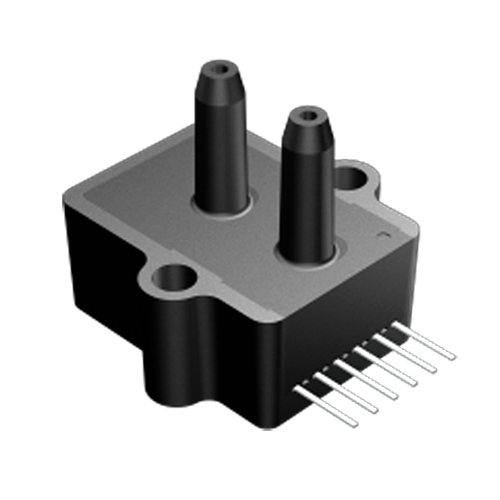

  • AXCA Series Barometric Amplified Pressure Sensors

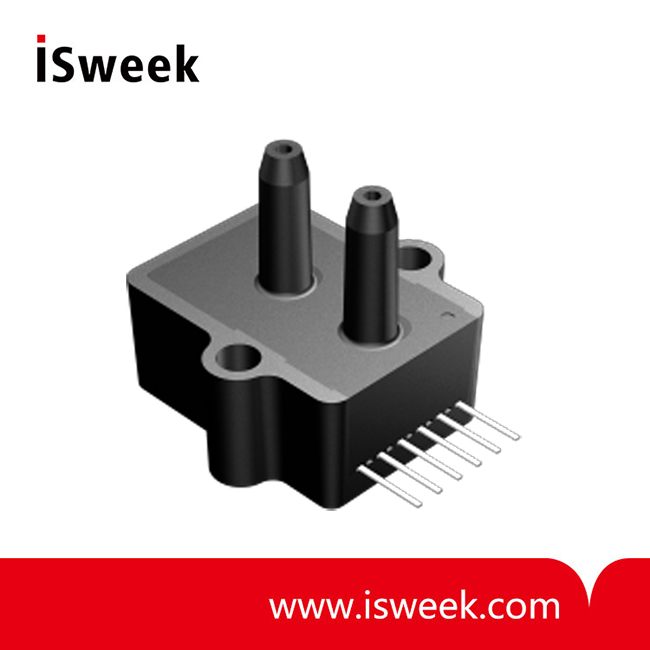

  • AXCA Series Barometric Amplified Pressure Sensors
Mouse over image to zoom

Product Specification

Barometric Pressure Sensors
600 to 1,100 mbar Barometric Pressure

AXCA Series Barometric Amplified Pressure Sensors General Description
These Barometric pressure sensors are based upon a proprietary package technology to reduce errors. This model provides a fixed 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined (MEMS) structure to provide a very linear output to measured pressure. The sensor embodies a vacuum reference.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

AXCA Series Barometric Amplified Pressure Sensors Options
• Ratiometric Output
• Fixed 4V Output with internal Voltage Reference
• Temperature Compensated (-25 to 85°C, -40 to 125°C, 5 to 50°C)
• Calibrated Zero and Span

AXCA Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Controls
• Chemical Analysis

AXCA Series Barometric Amplified Pressure Sensors

Pressure Sensor Ratings

Environmental Specifications
Lead Temperature, max (soldering 2-4 sec.)
250°C
Compensated Temperature
see below
Burst Pressure
60 psi
Operating Temperature
-40 to 125 °C


Storage Temperature
-40 to 125 °C


Humidity Limits
0 to 95% RH (non condensing)

AXCA Series Barometric Amplified Pressure Sensors Standard Pressure Ranges
Part Number
Operating Pressure
Supply Voltage
Compensated Temperature Range
BARO-A-4V
600 - 1100 mbar
4.5 to 5.5 V
5°C to 50°C
BARO-A-4V-PRIME
600 - 1100 mbar
4.5 to 5.5 V
-25°C to 85°C
BARO-A-4V-MIL
600 - 1100 mbar
4.5 to 5.5 V
-40°C to 125°C
BARO-A-4V-PRIME-REF
600 - 1100 mbar
5.5 to 16 V
-25°C to 85°C
