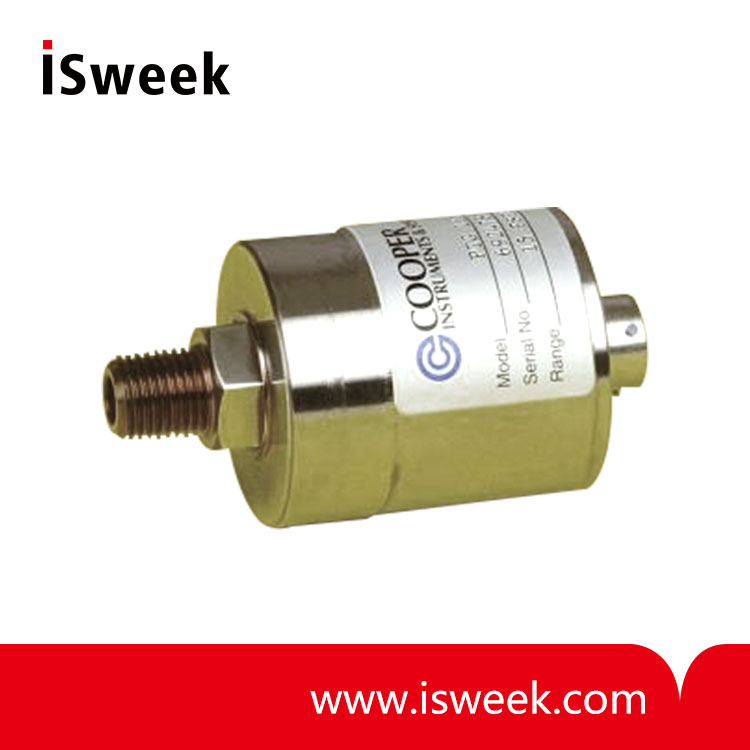

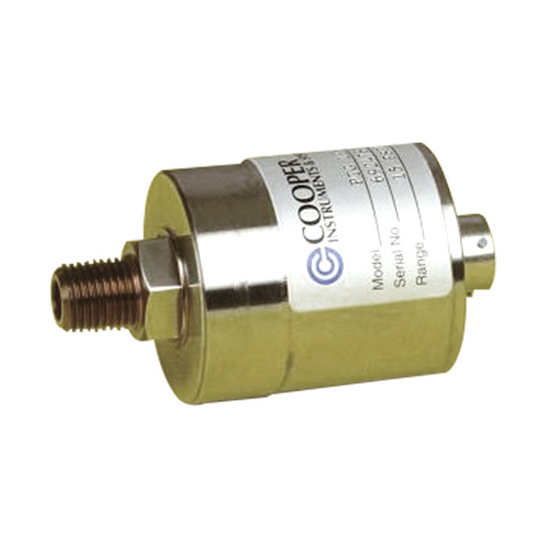

General Purpose Pressure Transducer - PTG 230

• Pressure Ranges: 0.5 psig to 60,000 psig
• Linearity: ±0.15% F.S
• Temperature Range: 60˚ to 160˚ F
• Stainless Steel
• Many Options
• 0.5 TO 60,000 PSI
• Optional Amplified Output
• 0.25 Full Scale Accuracy

Model Number: PTG 230
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PTG 230 - General Purpose Pressure Transducer

The PTG 230 is designed as a general purpose industrial pressure transducer. Pressure ranges span from 0.5 to 60,000 PSIG. It has stainless steel construction and utilizes a complete four arm 350 ohm strain gage bridge. The PTG 230 uses standard gage design. The PTA 232 has an internally sealed 0 psia reference.

PTG 230 General Purpose Pressure Transducer Features
• Stainless Steel
• Many Options
• 0.5 TO 60,000 PSI
• Optional Amplified Output
• 0.25 Full Scale Accuracy

PTG 230 General Purpose Pressure Transducer Specifications

Pressure Ranges	0.5 psig to 60,000 psig
Linearity	±0.15% F.S
Hysteresis	±0.10% F.S.
Repeatability	±0.05% F.S.
Material	Stainless Steel
Temperature Range	60˚ to 160˚ F
Output	0.5 psig - 1mv/psig 1 psi to 2 psi - 1-2 mv/v 5 psig to 60,000 psig - 3mv/v
Bridge Rresistance	350 ohm
Excitation	10 Vdc
Safe Overload	50% Over Capacity
Pressure Ports	1-10,000 psig see chart 15,000 psig to 60,000 psig - 9/16-18UNF per AE F250-C for 1/4 OD High Pressure Tubing
Cable	As Required - mating conn. not incl. (PTO6A-10-6S)

PTG 230 PRESSURE RANGES	D"	L"
5	2.25	2.09
10, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750	1.50	2.09
1000, 1500	1.50	2.35
2000, 3000, 5000, 7500, 10,000	1.50	2.39
15,000, 20,000, 30,000, 50,000, 60,000	1.50	2.21
*Consult Cooper
