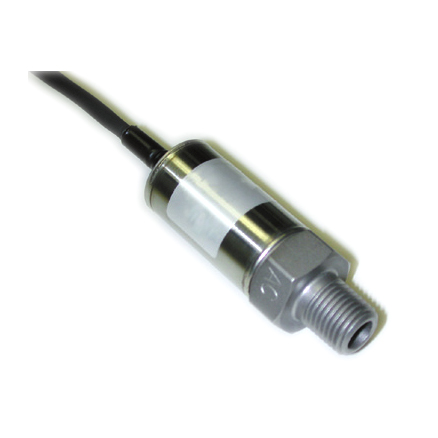

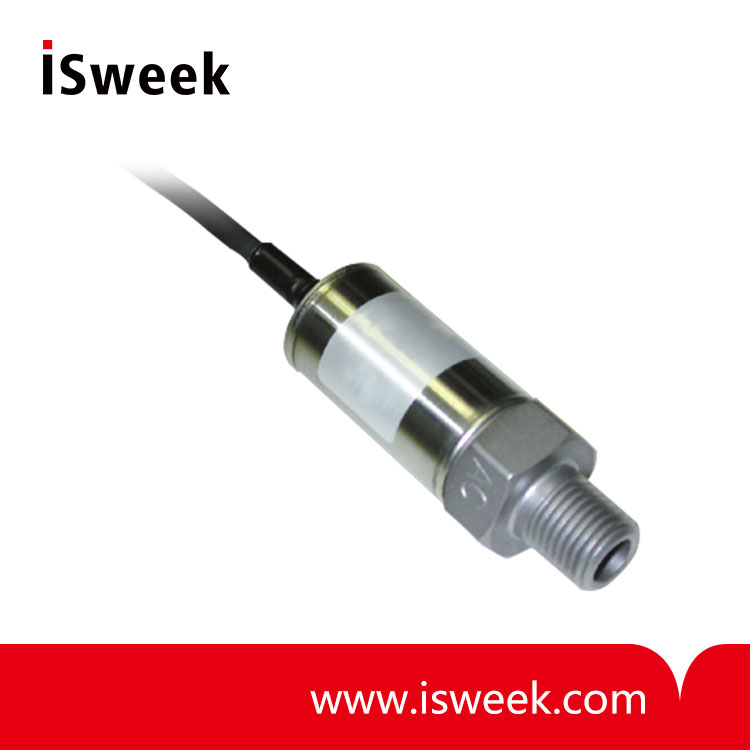

General Purpose Pressure Transducer - PTG 404 Series

• Pressure Ranges: 25 to 45,000 PSI
• Accuracy: ±0.1% F.S, typical
• Material: 17-4PH Wetted Parts 304 SS Housing
• Temperature Range: 30º to 158º F - Compensated
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination

Model Number: PTG 404 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PTG 404 Series - General Purpose Pressure Transducer

The PTG 404 is a competitively priced, high quality all stainless steel, pressure sensor intended for use in the measurement of gases and liquids. It is suitable for automotive diagnostics tools, refrigeration, hydraulics, pneumatics and data loggers. The PTG 404 pressure sensor is designed specifically for applications with demanding price and performance requirements. This sensor offers both millivolt and high level outputs. The high strength sensing element is machined from a solid piece of stainless steel, resulting in construction that contains no silicone oil, welds or internal O-rings. Measurements are available in gauge pressure covering ranges up to 45,000 PSI.

PTG 404 Series General Purpose Pressure Transducer Features
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination

PTG 404 Series General Purpose Pressure Transducer Specifications

Pressure Ranges	25 to 45,000 PSI
Accuracy	±0.1% F.S, typical
Material	17-4PH Wetted Parts 304 SS Housing
Temperature Range	30º to 158º F - Compensated
Output	0.5-4.5 Vdc Ratiometric 1-5,1-6 Vdc, 10 mV/V or 4-20 mA
Excitation	5 Vdc, or 10-28 Vdc
Safe Overload	200% Over Capacity
Burst Pressure	5X or 50,000 PSI whichever is less
Cable	Specify Below

AVAILABLE RANGES

-14.7-25 (compound), 25, 50, 100, 200,
500, 1000, 2500, 5000, 10,000, 15,000,
20,000, 30,000, 45,000 PSI

For Accuracy Specify the following:
PTG 404 - .10% Amplified

Pressure Connection:
A = 1/4" Male NPT
B = 1/8" Male NPT
C = 1/4" Male BSPP
E = 9/16" Male UNF [SAE6]
F = 7/16”-20 Male UNF [SAE4]
K = 7/16"-20 Female UNF [SAE4]
M = 3/8"-24 UNF Male [SAE3]
W= F250C Female Autoclave

Pressure Units:
B=Bar, K=Kg/cm2, P=PSI

Outputs:
1= 0.5-4.5V ratiometric
2= 0-5V (3 wire)
3= 1-5V
4= 4-20mA
5= 0-10V (3 wire)
6= 1-6V
G= 1-10V

Wetted Material:
0=17-4PH
1=316 L
2=Inconel

Electrical:
A=2Ft, B=4Ft, C=6Ft, D=10Ft,
E=Mini DIN 43650, F=Packard
Metripack 150 3-Pin Conn.

Order Code Example:
