Industrial Pressure Transmitter - JYB-KO-H

• Supply Voltage​: 12 to 30VDC
• Operating Range​: 100psi(5 bar) to 5000psi (350bar)
• Accuracy​: ±0.25%, ±0.5% (25℃)
• Pressure Response​: <100ms
• Long Term Stability​: <0.1% FS per year
• Temperature Range​: -20 to 85℃
• 4 to 20 mA output

  • Model Number: JYB-KO-H
  • Data Sheet: Date Sheet File
- +

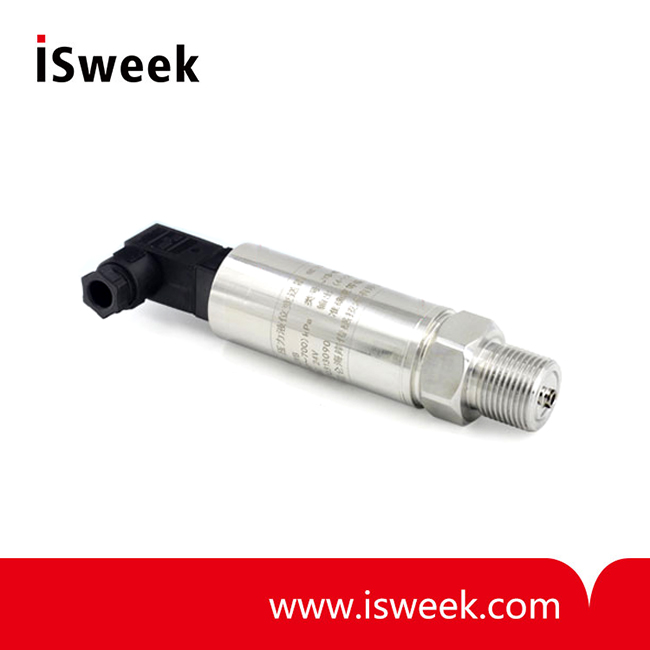

  • Industrial Pressure Transmitter

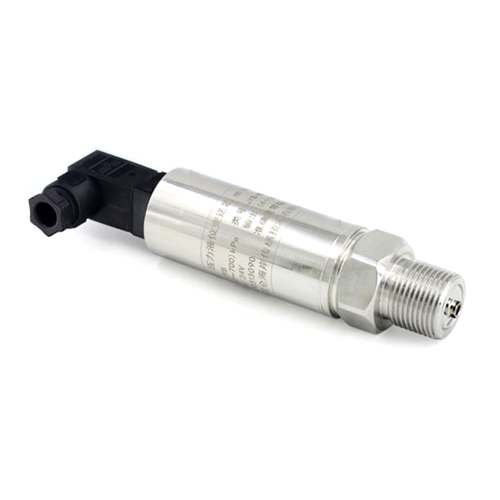

  • Industrial Pressure Transmitter
Mouse over image to zoom

Product Specification

JYB-KO-H Industrial Pressure Transmitter Description
Model JYB-K H is a cost efficient general purpose gage-only pressure transmitter. Each unit is constructed of stainless steel for durability in dry rugged environments. Both gas and liquid pressure overloads of up to 50% over capacity are safely accepted. The transmitter uses our proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

JYB-KO-H Industrial Pressure Transmitter Features
• 0.0015 % FS/°F temperature effect
• 0.2 %, 0.5 % accuracy
• 2 psig to 5000 psig range
• True gage or absolute
• 4 to 20 mA output
•  Isolated double wall construction
• Enhanced temperature stability,
• CE Certification

JYB-KO-H Industrial Pressure Transmitter Specification

Pressure Measurement
Supply Voltage
12 to 30VDC
Operating Range
Any zero based full scale from 100psi(5 bar) to 5000psi (350bar)
Over Pressure
Two times for the full scale
Output Signal
Current two-wire 4mA to 20mA (Load <500Ω)
Pressure Media
Fluids compatible with 316 stainless steel and
Hastelloy C276 (NACE compatible grades)

Performance Specifications
±0.25%, ±0.5% (25℃)
Pressure Response
Long Term Stability
<0.1% FS per year
Temperature Range
-20 to 85℃
Temperature Effects
Max 1.0% FS typical over 0 to 60℃
Max 1.5% FS typical over -20 to 85℃

Physical Connection
Pressure Connection
G1/4 female with Option B screw-in adaptor
Electrical Connection
M12×1.5 Bayonet plug (IP67)
DIN43650 Plug/Socket (IP65

JYB-KO-H Industrial Pressure Transmitter Ordering Codes
