Low Cost OEM Pressure Transducer - TDH30 Series

• 3 to 10,000 psi Range
• Various Outputs
• Compact Design
• 316 Stainless steel Housing
• Low Cost
• Industrial 1% Accuracy
• Custom Outputs and Ranges Available
• OEM Tested and Approved
• Low power consumption

  • Model Number: TDH30 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

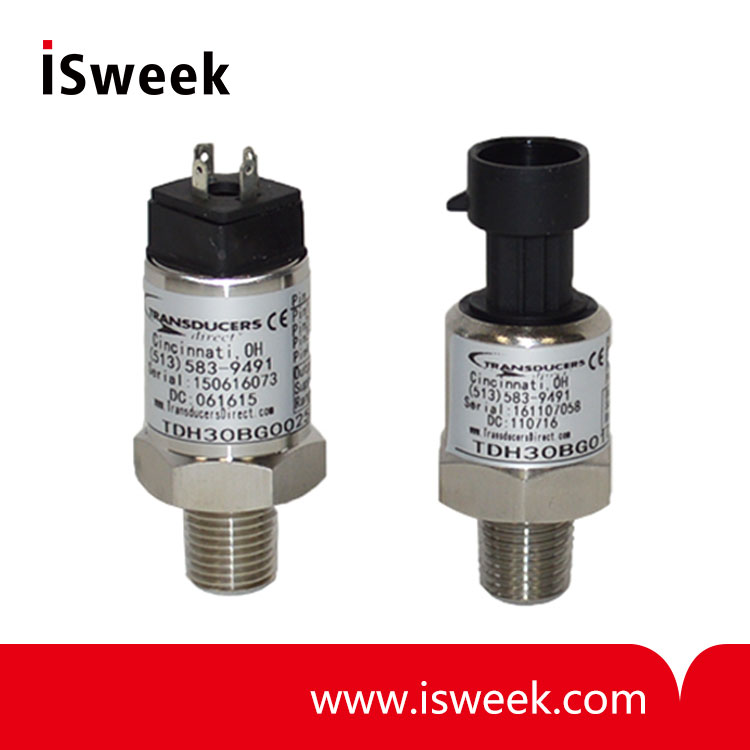

  • Low Cost OEM Pressure Transducer

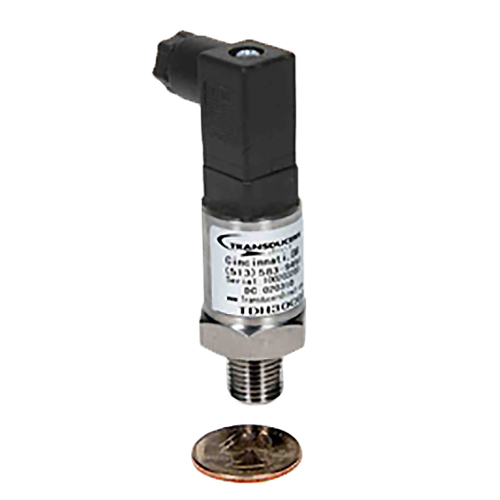

  • Low Cost OEM Pressure Transducer
  • Low Cost OEM Pressure Transducer
Mouse over image to zoom

Product Specification

TDH30 Series OEM Pressure Transducer DESCRIPTION
The TDH30 Series Pressure Transducer utilizes piezoresistance technology in an all stainless steel body. It is compact in size, has long term stability, ease of installation and is very economical as well as reliable.

The TDH30 sets a new price-performance standard for low cost, high volume commercial and industrial applications.

TDH30 Series OEM Pressure Transducer APPLICATIONS
• Hydraulic / Mobile Hydraulic
• Pneumatic Systems
• Food and Beverage Industry
• Refrigeration Systems
• Pumps and Compressors
• Energy and water management
• Construction and Agricultural Equipment

TDH30 Series OEM Pressure Transducer FEATURES
• 3 to 10,000 psi Range
• Various Outputs
• Compact Design
• 316 Stainless steel Housing
• Low Cost
• Industrial 1% Accuracy
• Custom Outputs and Ranges Available
• OEM Tested and Approved
• Low power consumption

TDH30 Series OEM Pressure Transducer SPECIFICATIONS

Input

Supply Voltage

 12-36 VDC

Pressure Range

 3 to 10,000 psi

Proof Pressure

 1.5 x full scale

Burst Pressure

 3 x full scale

Fatigue Life

 More than 4 million cycles

Performance @ 25°C (77°F)

Accuracy

 1% full scale, BFSL

Stability

 0.2% full scale

Compensated Temperatures

 -10 to 75°C (14 to 167°F)

Operating Temperatures

 -20 to 80°C (-4 to 176°F)

Zero and Span Offset Tolerance  1.5%

Current Consumption

 Approx 3mA for voltage output, 22mA for current output (4-20mA)

Shock
 50g, 11ms, 1/2 sine
Vibration
 11g peak From 10 to 400Hz
Mechanical Configuration

Pressure Port

 1/4 NPT (standard)

Electrical Connection

 9.4 mini DIN, 3 pin Packard

Ingress Rating

 IP65 with T-Direct standard 9.4 DIN cable, IP66 with T-Direct standard Packard cable

Housing

 316 stainless steel

Diaphragm Mateial

 3-75psi = 316 SS, >75-1600psi = ceramic, >1600-10,000 = 17-4 SS

 316SS is available instead of ceramic upon request

Sealing Material

 Neoprene

Approvals

 CE
