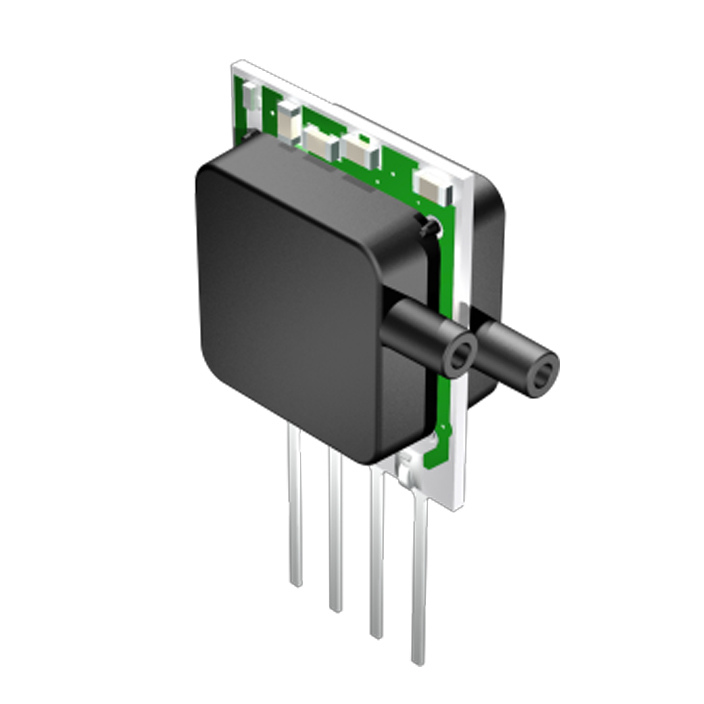

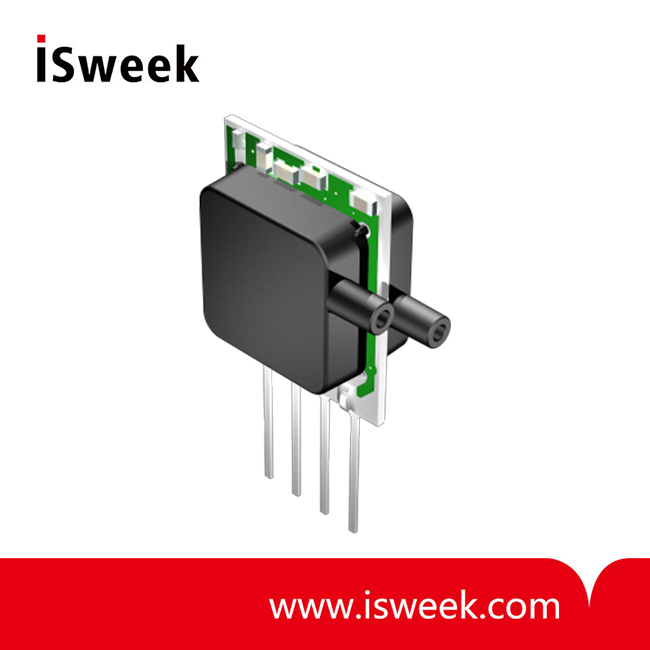

MAMP Series Miniature Amplified Low Pressure Sensors - 30 INCH-G-4V-MINI

• 0.5 to 30 inH2O Pressure Ranges
• Supply Voltage: +4.5 to +5.5 Vdc
• Common-mode pressure: 10 psig
• Lead Temperature (soldering 2-4 sec.): 250°C
• Compensated Temperature: 5 to 50 °C
• Operating Temperature: -25 to 85 °C
• Storage Temperature: -40 to 125 °C
• Humidity Limits: 0 to 95% RH (non condensing)

Model Number: 30 INCH-G-4V-MINI
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Miniature Amplified Low Pressure Sensors
Low Pressure (0.5 inH2O to 30 inH2O) Sensors

MAMP Series Miniature Amplified Low Pressure Sensors General Description
The MAMP series pressure sensors are based on a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.

MAMP Series Miniature Amplified Low Pressure Sensors Features
• 0.5 to 30 inH2O Pressure Ranges
• Temperature Compensated
• Calibrated Zero and Span

MAMP Series Miniature Amplified Low Pressure Sensors Applications
• Medical Instrumentation
• Environmental Controls
• HVAC

MAMP Series Miniature Amplified Low Pressure Sensors

Pressure Sensor Characteristics Maximum Ratings		Environmental Specifications
Supply Voltage, Vs	+4.5 to +5.5 Vdc	Compensated Temperature	5 to 50 °C
Common-mode pressure	10 psig	Operating Temperature	-25 to 85 °C
Lead Temperature (soldering 2-4 sec.)	250°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

MAMP Series Miniature Amplified Low Pressure Sensors Standard Pressure Ranges

Part Number	Operating Pressure	Nominal Span	Proof Pressure	Burst Pressure
0.5 INCH-Dx-4V-MINI	±0.5 inH2O	4 V	100 inH2O	200 inH2O
1 INCH-Dx-4V-MINI	±1 inH2O	4 V	100 inH2O	200 inH2O
1 INCH-G-4V-MINI	0 - 1 inH2O	4 V	100 inH2O	200 inH2O
5 INCH-Dx-4V-MINI	±5 inH2O	4 V	200 inH2O	300 inH2O
5 INCH-G-4V-MINI	0 - 5 inH2O	4 V	200 inH2O	300 inH2O
10 INCH-Dx-4V-MINI	±10 inH2O	4 V	200 inH2O	300 inH2O
10 INCH-G-4V-MINI	0 - 10 inH2O	4 V	200 inH2O	300 inH2O
20 INCH-Dx-4V-MINI	±20 inH2O	4 V	300 inH2O	500 inH2O
20 INCH-G-4V-MINI	0 - 20 inH2O	4 V	300 inH2O	500 inH2O
30 INCH-Dx-4V-MINI	±30 inH2O	4 V	500 inH2O	800 inH2O
30 INCH-G-4V-MINI	0 - 30 inH2O	4 V	500 inH2O	800 inH2O
