Multi-purpose Photoelectric Sensor - RP74 Series

• Built-in Timer Modes
• Several Mounting Options
• Universal Power Supply
• Long Range
• Through Beam: 61m
• Power Supply​: ​10-40 VDC or 12-​240VDC/24-240 VAC​
• Current Consumption​: 30mA max.​​
• Mechanical Protection​: IP67​​

  • Model Number: RP74 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

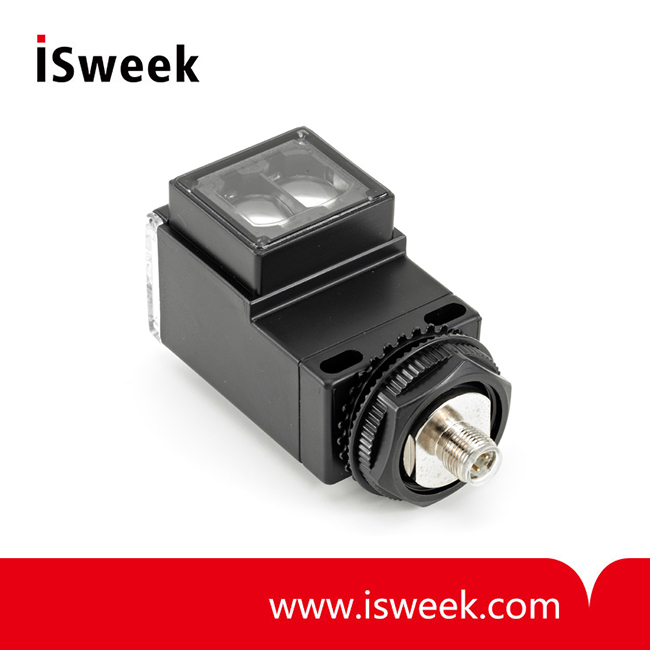

  • Multi-purpose Photoelectric Sensor

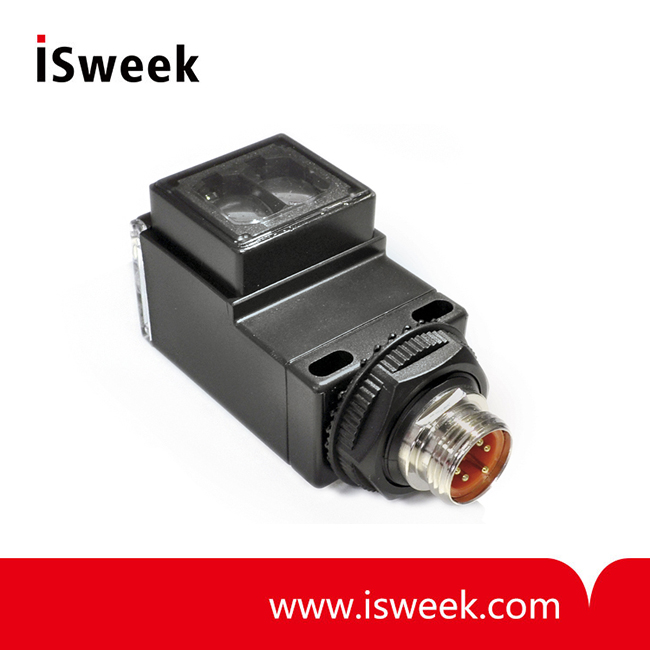

  • Multi-purpose Photoelectric Sensor

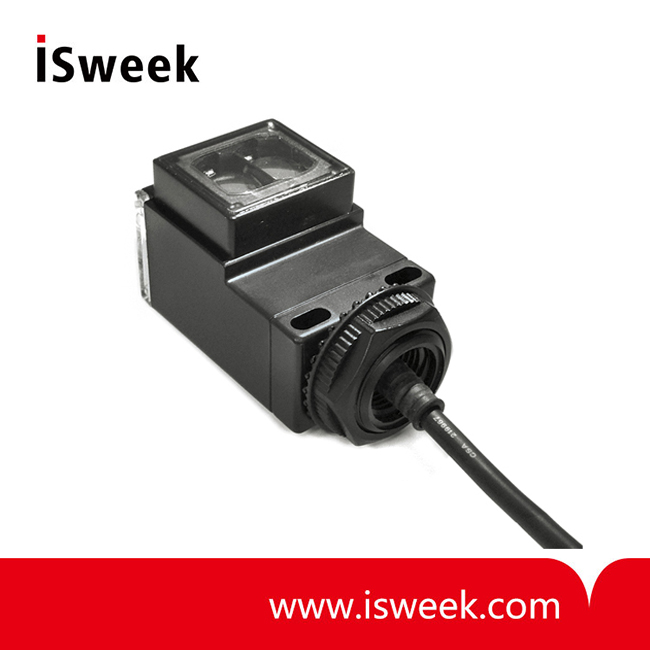

  • Multi-purpose Photoelectric Sensor
Mouse over image to zoom

Product Specification

RP74 Series Multi-purpose Photoelectric Sensor Description
• Built-in Timer Modes
• Several Mounting Options
• Universal Power Supply
• Long Range

Modes
 Ranges
Through Beam
 61m
Retroreflective
 9.14m
Diffuse
 3.04m
Clear Object Detection
 1.2m
Fiber Optic Mode - (range depends on fiber used)


RP74 Series Multi-purpose Photoelectric Sensor


Through-beam
 Diffuse
Retroreflective
(Polarized)
Fiber Optic
Clear Object
Detection
Operating Range
 61m (200 ft.)
 3.04m (10 ft.)
 9.14m (30 ft.)
 Depends on fiber
 1.20m (3.9 ft.)
Light Emission
 880nm Infrared LED
 880nm Red LED
 660nm Red LED
 880nm Infrared LED
 660nm Red LED
DC Models (10-40 VDC) M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Emitter
 RP74-T061MD-EY9Q4LE



NPN / PNP -
with timing
RP74-T061MD-
CY9Q4UE-T
RP74-D3040D-
CY9Q4UE-T
RP74-L9140D-
CY6Q4UE-T
 RP74-FGFD-
CY9Q4UE-T
 RP74-S1200D-
CY6Q4UE-T
AC Models (12-240 VDC/24-240 VAC) ½"-20 UNF - Recommended Mating Cable: part # U-FS5TA-V105 (straight), U-FA5TA-V105 (right-angle)
Emitte
 RP74-T061MA-EY9Q4LM



SPDT Relay
 RP74-T061MR-
CY9Q5LM-T
 RP74-D3040R-
CY9Q5LM-T
RP74-L9140R-
CY6Q5LM-T
RP74-FGFR-
CY9Q5LM-T
 RP74-S1200R-
CY6Q5LM-T
Technical Data
Power Supply
 10-40 VDC or 12-240VDC/24-240 VAC
Indicator LEDs
 Green: Power, Yellow: Output, Red: Margin
Current Consumption
 30mA max.
Saturation Voltage
 2.5 V max.
Output Current
 30mA max.
Response Time
 NPN/PNP: 5ms, SPDT Relay: 23ms
Timing Options
 No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay).
Time Settings
 Adjustable, 0.1...15s (for Models with Timing Delay)
Mechanical Protection
 IP67
Housing Material
 Glass Fiber Reinforced Plastic, Cover Gasket Material: Neoprene
Lens Materia
 Acrylic
Operating Temp.
 25...+55°C (-13...+131°F)
Storage Temp.
 -40...+55°C (-40...+131°F)
Reference Standard
 EN 60947-5-2
