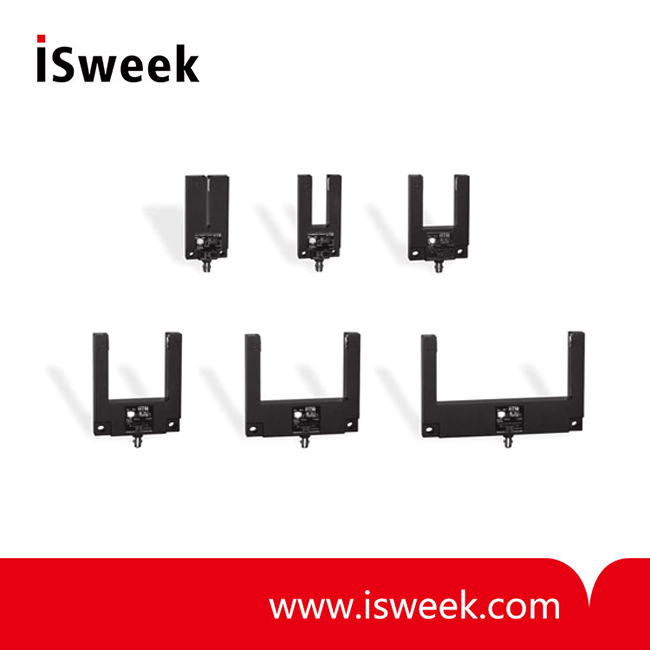

Slot Photoelectric Sensor - U Series

• 2, 15, 30, 50, 80 and 120mm Widths
• High Switching Frequency
• Rugged Die-cast Metal Housings
• Through Beam: 2mm ~ 120mm
• Supply Vo​ltage: 10-30 VDC
• Voltage Drop: < 3V​
• Rated Isolated Voltage: 75 VDC​

  • Model Number: U Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Slot Photoelectric Sensor
  • Slot Photoelectric Sensor
Mouse over image to zoom

Product Specification

U Series Slot Photoelectric Sensor Description:
• 2, 15, 30, 50, 80 and 120mm Widths
• High Switching Frequency
• Rugged Die-cast Metal Housings


Modes                  Ranges
Through Beam      2mm ~ 120mm


U Series Slot Photoelectric Sensor Part Numbers

NPN (red LED, 660nm)
U02-T0002N-CY6Q4UP
U15-T0015N-CY6Q4UP
U30-T0030N-CY6Q4UP
PNP (red LED, 660nm)
U02-T0002P-CY6Q4UP
U15-T0015P-CY6Q4UP
U30-T0030P-CY6Q4UP
Slot Spacing
2mm
15mm
30mm
Supply Voltage
10-30 VDC
Voltage Drop
< 3V
Rated Isolated Voltage
75 VDC
Rated Operational Current
200mA
No-load Supply Current
≤35mA
Reverse Polarity Protection
Yes
Short-circuit Protection
Yes
On/Off Delay
0.2ms
Operating Frequency
3000Hz
1500Hz
Switching Hysteresis
≤0.1mm
Resolution
0.3mm
Repeatability
0.02mm
Output Function
Light On / Dark On
Permissible Ambient Light
10 Kℓ
Function Indicator
red LED
Operating Temp
-10°C to 60°C (14°F to 140°F)
Mechanical Protection
IP65
Reference Standard
IEC 60947-5-2
Housing Material
Die-cast Zinc
Connection
M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle)





U Series Slot Photoelectric Sensor Part Numbers
NPN (red LED, 660nm)
U50-T0050N-CY6Q4UP
U80-T0080N-CY6Q4UP
U120-T0120N-CY6Q4UP
PNP (red LED, 660nm)
U50-T0050P-CY6Q4UP
U80-T0080P-CY6Q4UP
U120-T0120P-CY6Q4UP
Slot Spacing
50mm
80mm
120mm
Supply Voltage
10-30 VDC
Voltage Drop
< 3V
Rated Isolated Voltage
75 VDC
Rated Operational Current
200mA
No-load Supply Current
≤35mA
Reverse Polarity Protection
Yes
Short-circuit Protection
Yes
On/Off Delay
0.2ms
0.33ms
Operating Frequency
1500Hz
Switching Hysteresis
≤0.1mm
≤0.2mm
Resolution
0.5mm
0.8mm
Repeatability
0.04mm
0.06mm
0.08mm
Output Function
Light On / Dark On
Permissible Ambient Light
10 Kℓ
5 Kℓ
Function Indicator
red LED
Operating Temp.
-10°C to 60°C (14°F to 140°F)
Mechanical Protection
IP65
Reference Standard
IEC 60947-5-2
Housing Material
Die-cast Zinc
Connection
M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle)
