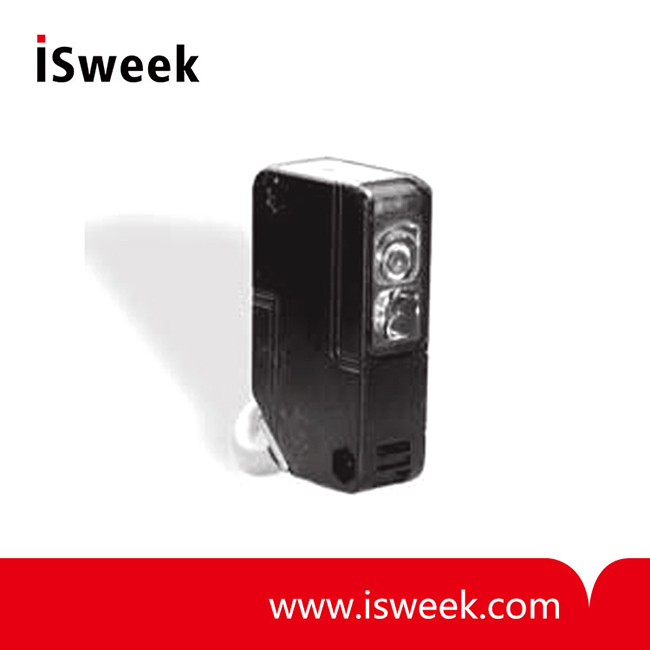

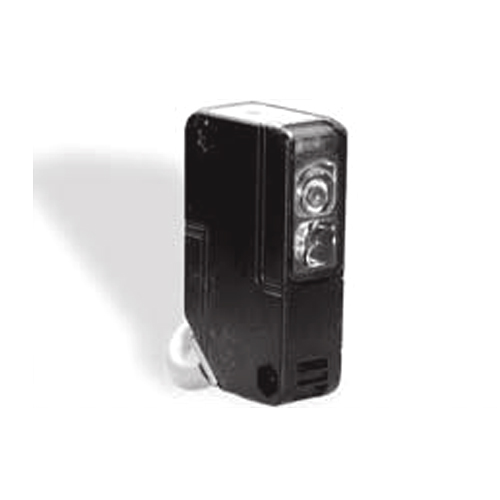

Multi-voltage Photoelectric Sensor - RS62 Series

• 12-240 VDC or 24-240 VAC
• SPDT Relay Models
• Accurate Detection
• Through Beam: 10 ~ 30m
• Power Supply: 12...240 VDC or 24-240 VAC ± 10%
• Current Consumption: 2 VA max
• Response Time: 10 ms max.
• Mechanical Protection: IP66

Model Number: RS62 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RS62 Series Multi-voltage Photoelectric Sensor Description
• 12-240 VDC or 24-240 VAC
• SPDT Relay Models
• Accurate Detection

Modes	Ranges
Through Beam	10 ~ 30m
Retroreflective	5 ~ 7m
Diffuse	700mm

RS62 Series Multi-voltage Photoelectric Sensor

	Through-beam	Diffuse	Retroreflective	Retroreflective with Polarizing Filter
Operating Range	30m (98.4 ft.)	700mm (27.56 in.)	7m (22.9 ft.)	5m (16.4 ft.)
Part Numbers
Emitter	RS62-T030MD-EY9C2L2
SPDT Relay (Light On)	RS62-T030MR-LY9C5L2	RS62-D0700R-LY9C5L5	RS62-L7000R-LY9C5L5	RS62-L5000R-LY6C5L5-PF
SPDT Relay (Dark On)	RS62-T030MR-DY9C5L2	RS62-D0700R-DY9C5L5	RS62-L7000R-DY9C5L5	RS62-L5000R-DY6C5L5-PF
Technical Data
Power Supply	12...240 VDC or 24-240 VAC ± 10%
Current Consumption	2 VA max
Light Emission	Infrared (Through-beam, Diffuse & Retroreflective) or Modulated Red LED (Polarized Retroreflective)
Setting	Continuously variable adjuster (except for long range through-beam and retroreflective models)
Indicator LEDs	Red LED: Operation Indicator, Green LED: Stability Indicator
Output (Relay contact 1c)	* Switching capacity: 250 VAC 1A (resistive load) 30 VDC 2A (resistive load) * Electrical life: 100,000 or more operations (at rated AC load) 50,000 or more operations (at rated DC load) * Mechanical life: 100,000 or more operations
Response Time	10 ms max.
Switching Frequency	10 Hz max.
Connection	2 meter cable
Mechanical Protection	IP66
Housing Material	Housing: ABS, Lens: Polycarbonate
Operating Temp.	-20...+55°C (-4...+131°F)
Reference Standard	EN 60947-5-2
