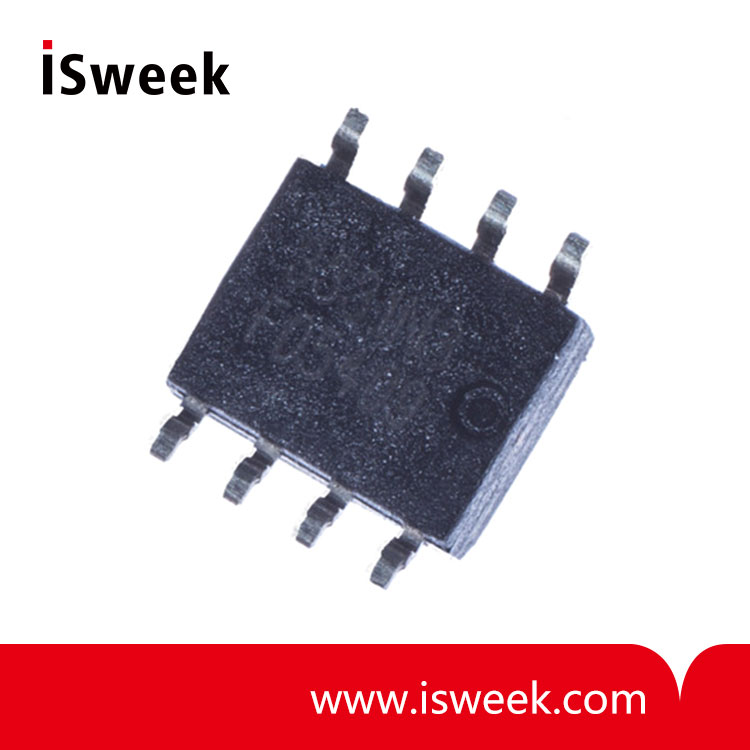

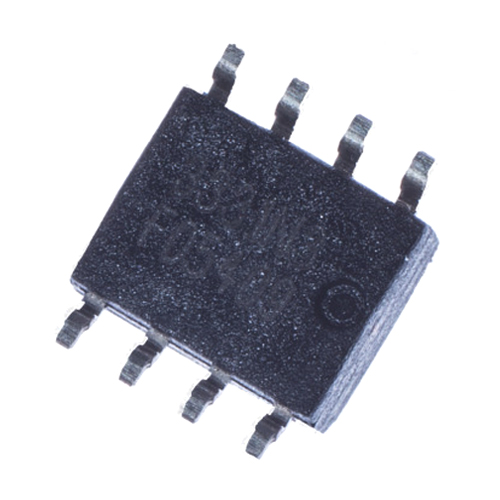

100 psi Absolute Gas Pressure Sensor with Bridge Output - SPD100ABsmd8

• Excitation Voltage: 5V
• Excitation Current: 1mA
• Pressure range(N2): 0 ~ 100psi
• Span (@100 PSI): 70 - 130mV
• Offset: ±30mV
• Linearity: ±0.1 %FS
• Operating temperature: -40~125°C
• Storage temperature: -50 ~ 135°C

Model Number: SPD100ABsmd8
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SPD100ABsmd8 Pressure Sensor

Gas Pressure Sensor For Absolute Type Measurement IN SO8
The SPD100ABsmd8 series SPD Absolute Pressure sensors are designed for gas pressure sensitive applications and are encapsulated in a miniature Smd8-pins package. This sensor provides a low-cost solution for high volume applications. Due to automatic production price is very low and nearby the price of a bare die without the need for the customer to handle dies by bonding, etc. Other pressure ranges on request available.

SPD100ABsmd8 Absolute Gas Pressure Sensor Electrical Characteristics

(measured @5V exc. voltage and 25 °C, with nitrogen)

Parameter	Min	Typ	Max	Units
Excitation Voltage		5		V
Excitation Current	-	1		mA
Pressure range(N₂)	0		100	psi
Span (@100 PSI)	70	100	130	mV
Offset	-30		30	mV
Temp Coeff. Span 1)	-17.5	-19.5	-21.5	%FS/100°C
Temp Coeff. Offset 1)	-7		7	%FS/100°C
Linearity 2)		±0.1		%FS
Bridge impedance	4	5	6	KΩ
Operating temperature	-40		125	°C
Storage temperature	-50		135	°C
Over pressure			3x	FS
