Ultra-High Speed LABEL•EYE Label Sensor - LER10 Series

• Supply Voltage: 10 to 30 VDC
• Current Requirements: 45mA (exclusive of load)​
• Ambient Temperature:-40°C to 70°C (-40°F to 158°F)​
• 10 microseconds Response Time
• 5 microseconds Repeatability
• Waterproof, ratings: NEMA 4 and IP66

  • Model Number: LER10 Series
  • Data Sheet: Date Sheet File
- +
  • Ultra-High Speed LABEL•EYE Label Sensor
  • Ultra-High Speed LABEL•EYE Label Sensor
  • Ultra-High Speed LABEL•EYE Label Sensor
Mouse over image to zoom

Product Specification

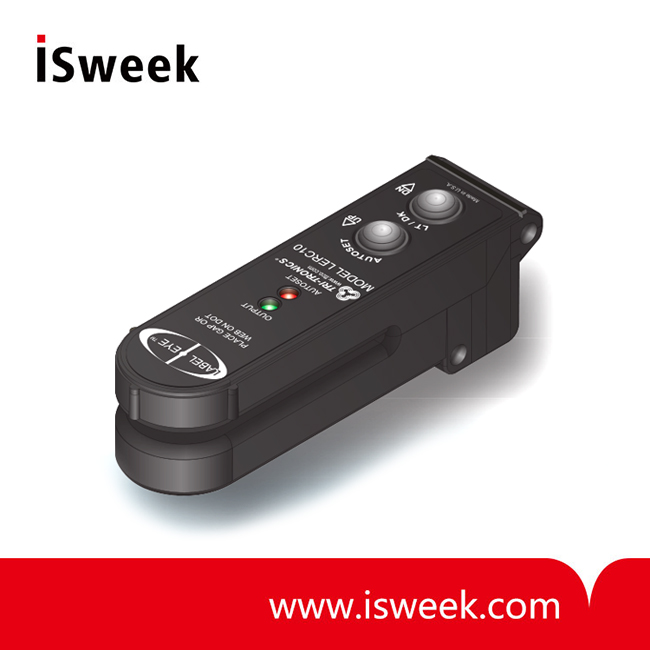

Ultra-High Speed LABEL•EYE Label Sensor Description
The Ultra-High Speed LABEL•EYE was specifically designed to overcome issues of speed and accuracy that are common in label applying, counting, printing, and inspecting. Designing a sensor that is accurate within just .004" at 2000 feet per minute is no small feat. This American designed and manufactured sensor also is the most affordable product in its class... starting at just under $150. It is the most economical solution as well as the most robust.

If the application is to print a date code in a small white box on a label, or on a web, there is no simpler product available at this speed and price. From start up speed to top line speeds, the Ultra-High Speed LABEL•EYE doesn't miss a single label, nor will it have to be adjusted for print migration/drifting or label landing inconsistency... it is just that repeatable.

If the overall cost of your current solution is less than desirable and expensive high speed label sensors provide an unreliable result, then applying the Ultra-High Speed LABEL•EYE should provide the worry free, reliable, and high level production accuracy desired.

Ultra-High Speed LABEL•EYE Label Sensor Features
• 10 microseconds Response Time
• 5 microseconds Repeatability
• One Button AUTOSET
• Tweak-able Up/Down Adjustment
• M12, M8, or Cable Models
• Robust Electrical and Mechanical Design
• Remote AUTOSET on M12 Models
• Waterproof

Ultra-High Speed LABEL•EYE Label Sensor Benefits
• Easy to Set Up
• Highly Accurate and Precise
• Low Maintenance
• Affordable, Low-Cost Option
• Made in USA
• Durable and Reliable

Ultra-High Speed LABEL•EYE Label Sensor Applications
• Label Rewinding
• Label Applying
• Splice Detection
• High Speed Counting
• Perforation Detection
• Weld Seam Detection
• Registration Mark Sensing

Ultra-High Speed LABEL•EYE Label Sensor Specifications

• 10 to 30 VDC
• Polarity Protected
• 45mA (exclusive of load)
• (1) NPN and (1) PNP output transistors
• Sensor outputs can sink or source up to 150mA (current limit)
• All outputs are continuously short circuit protected
• 10 microseconds response time
• 5 microseconds repeatability
• AUTOSET - One-push button setup
• LT/DK - Push and Hold to change output Light On/Dark On
• UP/DWN - Tweak-able Up/Down Adjustment
• High intensity red LED
• Pulse modulated
• Minimal hysteresis promotes the detection between the backing material and the label depending on the settings
• Responds to sensor’s pulsed modulated light source, resulting in high immunity to most ambient light
• Green LED flashes when AUTOSET routine is activated and stays illuminated when AUTOSET is completed
• Red LED illuminates when sensor’s output transistors are "ON".
• -40°C to 70°C (-40°F to 158°F)
• Chemical resistant high thermoplastic PPS housing
• Waterproof, ratings: NEMA 4 and IP66
• Conforms to heavy industry grade CE and UL requirements

Ultra-High Speed LABEL•EYE Label Sensor How to Specify

1.Select Sensor:
    Ultra-High Speed LABEL•EYE
    LERC10 = Red LED, 4-pin M8 Connector
    LERR10 = Red LED, 5 Conductor, 6 ft. (1.8m) Cable
    LERRC10-M12 = Red LED, 5-Pin, M12 Connector
2.Select Cable or Connector:
    Blank = 6 foot (1.8m) Cable
    C = 6 inch (152mm) pigtail with 5-pin connector (accessory cable required)
